US STOCK 100W Moveable Laser Cleaner Handheld Moveable Fiber Laser Cleansing Machine for Steel Rust, Stains,Plating and Oil Take away

$15,199.00

Added to wishlistRemoved from wishlist 0


Worth: $15,199.00
(as of Aug 29,2022 22:25:58 UTC – Particulars)


Product Description

Portable Handheld Laser Cleaning Machine

Portable Handheld Laser Cleaning Machine

Benefit of Laser Cleansing Machine

Superb Laser—Mopa Fiber Laser Has the Traits of Independently Adjustable Pulse Width and Frequency,and Can Nonetheless Preserve a Excessive and Secure Peak Energy Output Below the Situation of Altering the Pulse Width and Frequency.
No Injury—Higher Management of Warmth Enter to Stop Extreme Substrate Temperature or Micro-melting
Lengthy Life—Laser Supply Can Use 100,000+ H, and Work Repeatedly for 24H.
Collimated Laser Beam Output,Beam Dimension Customizable (Default 4mm).

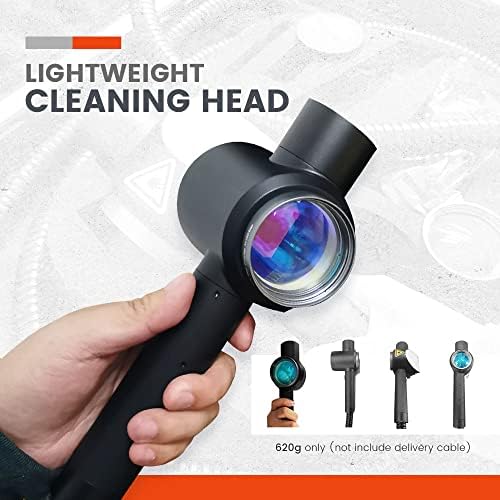

Mild—The Cleansing Head Is Extraordinarily Light-weight, 620g Solely.
Easy Operation—Patented Purple Mild Assisted Focus Know-how, Can Regulate The Focus Place In accordance To Completely different Focus Lenses
Wi-fi Management—Can Understand Parameter Setting And Emission Management Remotely, And Replace Parameters At Any Time

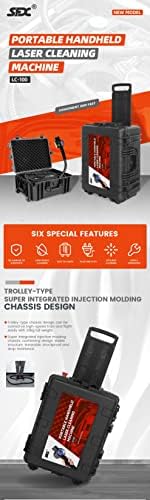

Moveable—Trolley-type Chassis Design, Can Be Carried On Excessive-speed Practice And Flight Simply With 28kg Full Weight.
Secure Construction—Tremendous Built-in Injection Molding Chassis, Cushioning Design, Wearable,Shockproof And Drop Resistance.

PARAMETERS PULSED FIBER LASER CLEANER

Laser Mannequin
YDFLP-CL-100-1-A


<2

Most Pulse Power
1.5mJ

Pulse Frequency Vary
1-4000kHz

Pulse Width
2-500ns

Output Energy Instability
<5%

Energy Provide Voltage
48V

Energy Consumption
<450W

Temperature Vary
0~40℃

Storage Temperature Vary
-10~60℃

Output Methodology
Pulsed/CW

Energy Provide Voltage
220V/110V

Central Wavelength
1064nm

Cable Size
5m

Scan Mode
Beeline/ Rectangle/ Spherical/ Sine/ Double-string

Handheld Fiber Laser Cleaning Machine

Handheld Fiber Laser Cleaning Machine

laser cleaner head

laser cleaner head

HAND-held LASER HEAD

The Hand-held Laser Head of the Cleansing Machine Has a Easy Look, Small and Mild Weight, Which Can Be Used for a Lengthy Time with Handheld. the Constructed-in Scanning System Makes use of a Small Excessive-speed Motor and Drive. the Most important Physique is Built-in Processing and Molding, Which is Robust and Dustproof, Secure and Sturdy.

LASER HEAD OF CLEANING MACHINE

LASER HEAD OF CLEANING MACHINE

RED LIGHT & DOT FOCUING

The Laser Head Adopts an Modern Purple Mild Auxiliary Focusing Design, Which Can Simply Discover the Focus Place Below Completely different Subject Lenses by Utilizing the Purple Mild Indicator, Which Solves the Issues of Inaccurate Focus and Single Adjustment Methodology of Current Merchandise on the Market, and Satisfies Completely different Eventualities. Assisted Focus Wants.

Laser Rust Removal

Laser Rust Removal

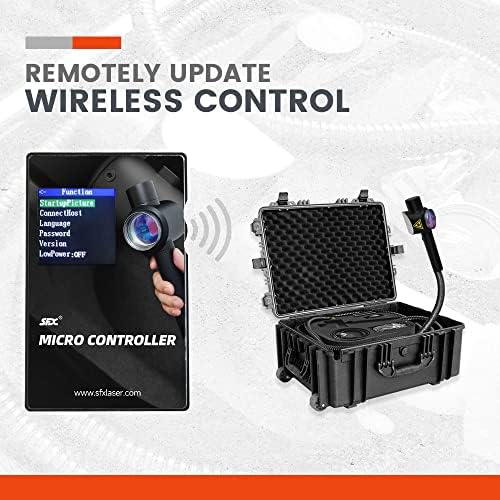

WIRELESS CONTROLLER

Features:Marking Parameter Setting,Drawing Graph Setting,alarm Monitoring, State Monitoring and So On.
6 Interfaces: Present Settings, Graphical Settings, Cleansing Parameters, Standing Prompts, Alarm Monitoring, and Operate Choice.
Can Understand Parameter Setting and Emission Management Remotely.Replace Parameters at Any Time

Laser Clerner Machine

Laser Clerner Machine

JPT LASER SOURCE

JPT CL sequence laser make use of grasp oscillator energy amplifier (MOPA) configuration,and present wonderful laser efficiency in addition to excessive stage of temporal pulse shaping controllability. As in comparison with the Q-switching know-how, the heartbeat repetition frequency (PRF) and pulse width could be managed independently in MOPA configuration, via adjusting totally different mixture of the above parameters, the height energy of laser could be effectively maintained. And allow JPT laser appropriate for extra materials processing which Q-switch restricted. CL sequence laser designed with ultra-light output connector, and nonetheless be anti-high reflection, undoubtedly be the best choice for handheld or robotic cleansing system.

laser cleaner head

laser cleaner head

LASER HEAD OF CLEANING MACHINE

LASER HEAD OF CLEANING MACHINE

Laser Rust Removal

Laser Rust Removal

Laser Clerner Machine

Laser Clerner Machine

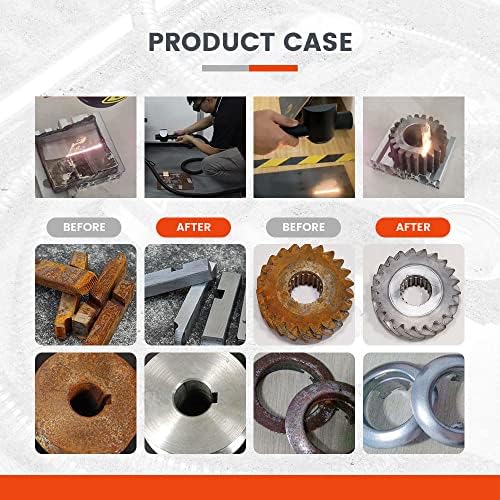

Cleansing Results

Rust Laser Removal Machine

Rust Laser Removal Machine

The Cleansing Machine Has Many Benefits Such As Moveable and Light-weight, Versatile and Adjustable Parameters, Wi-fi Management, And so on., Which Can Effectively Take away Rust, Stains, and Oil on the Floor of the Workpiece. , Plating, And so on., Can Be Utilized to Mechanical Processing, Cultural Relics Restoration, Mildew Cleansing, Meals Processing, Digital Circuits and Different Industries. with the Traits of Exact Positioning, It Can Meet the Processing of a Number of Modeling Workpieces and Obtain Environment friendly Cleansing.

Transport Methodology
By Air Specific
By Air Specific
By Air Specific
By Sea & Truck
By Sea & Truck

Laser Sort
Steady/Modulation
Steady/Modulation
Pulse Sort
Steady/Modulation
Steady/Modulation

Laser Sort Distinction
It’s appropriate for large-scale metal buildings, equivalent to pipes, and so forth. Because of its giant dimension and quick warmth dissipation,the necessities should not excessive and the cleansing pace is required to be quick.
It’s appropriate for large-scale metal buildings, equivalent to pipes, and so forth. Because of its giant dimension and quick warmth dissipation,the necessities should not excessive and the cleansing pace is required to be quick.
There are excessive precision necessities, or the heating of the substrate must be strictly managed, or there are excessive necessities for floor roughness and non-destructiveness.
It’s appropriate for large-scale metal buildings, equivalent to pipes, and so forth. Because of its giant dimension and quick warmth dissipation,the necessities should not excessive and the cleansing pace is required to be quick.
It’s appropriate for large-scale metal buildings, equivalent to pipes, and so forth. Because of its giant dimension and quick warmth dissipation,the necessities should not excessive and the cleansing pace is required to be quick.

Merchandise Weight ‏ : ‎ 1.37 Kilos
Date First Out there ‏ : ‎ June 20, 2022
Producer ‏ : ‎ XINCHENG PRECISION
ASIN ‏ : ‎ B0B4J824ZX
